Customized Color Indoor Multi Mode Fiber Optic Cable for Telecom Comunication Network

Name: Customized Color Indoor Multi Mode Fiber Optic Cable for Telecom Comunication Network
Brand: HX Fiber
Price: 1 USD

Quality Customized Color Indoor Multi Mode Fiber Optic Cable for Telecom Comunication Network wholesale

Model Number : HX-LXK2

Type : Indoor Fiber Optic Cable, Indoor Fiber Optic Cable

Place of Origin : Guangdong, China

Brand Name : HX Fiber

Number of Conductors : ≥ 10

Color : Customized Color

Product name : Spiral Armored Fiber Cable

Application : Telecom Comunication

Certification : CE/ROHS/ISO9001

Jacket : PVC LSZH LSOH PE HDPE

Length : Custom Length

Keyword : High Speed

Package : Wooden Drum

Service : OEM ODM Accept

Packaging Details : Wooden shaft+Export cardboard box

Port : Shenzhen

Supply Ability : 1500000 Piece/Pieces per Month

MOQ : 1000 pieces

Price : Negotiable

Contact Now

PRODUCT PARAMETERS
Tabulation	Single mode	Multi mode	Multi mode
Fiber core diameter	9±0.4	50±2.5	62.5±2.5
Cladding diameter	125±1	125±1	125±1
Fiber optic cable loss	0.4bd/km@1310nm	3.5bd/km@850nm	3.5bd/km@850nm
Fiber optic cable loss		0.3bd/km@1550nm	1.5bd/km@1300nm	1.5bd/km@1300nm
Outer diameter of fiber optic cable	2.9±0.1
Number of fiber cores	2Core (multi core customizable)
Fiber optic cable weight	~15
Temperature performance	-20 ℃ -+70 ℃
Bending radius	Dynamic 20x OD/Static 10x OD
Compressive strength	Long term 1000/Short term 3000
Tensile strength	Dynamic 300/Static 600
Sheath material	PVC, LSZH, PE, PU, PTEE, SGS, UL
Sheath color	Multiple colors available

PRODUCT DESCRIPTION

Customized Color Indoor Multi Mode Fiber Optic Cable for Telecom Comunication Network

INDOOR SPIRAL ARMOURED

MULTI-MODE GIGABIT FIBER CABLE

Customization supporting

LIGHT SPEED TRANSMISSION

European Standard:Inner Dia 50um/Outer Dia 125um

HUNDRED THOUSAND TIMES WARRANTY

Bending radius/Streching/Tensile resistance

Made of high quality raw materia, More durable than any other in the market

LASER TRANSMISSION CAUSE "ZERO" ATTENUATION

Om2 Multimode cable,has better anti-interference,not affected by electromagnetic waves Support 2km no attenuation transmission

ADOPTING EXCELLENT

ENVIRONMENTAL RAW MATERIAL

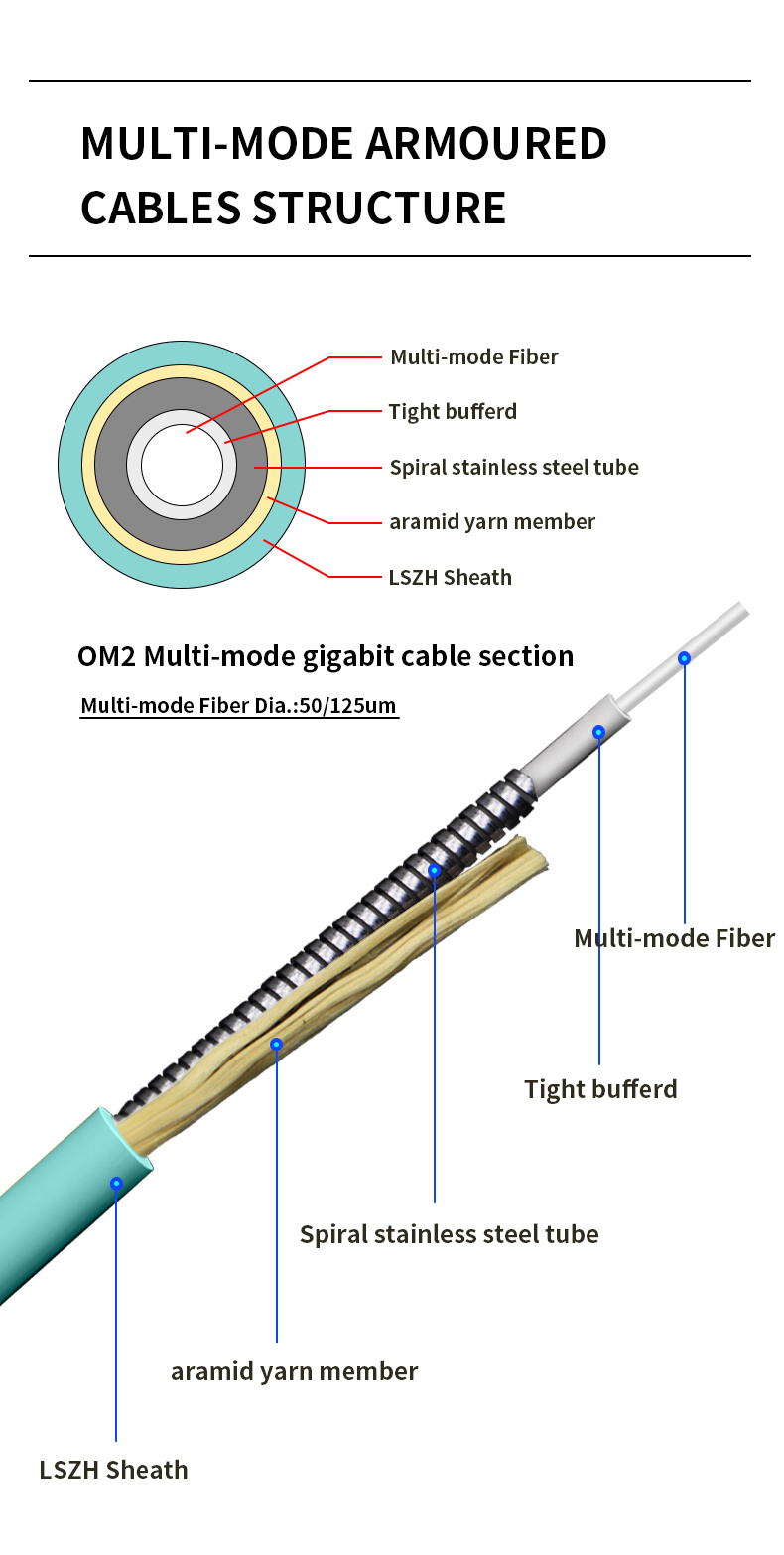

MULTI-MODE ARMORED FIBER OPTIC CABLES STRUCTURE

PRODUCT DESIGN

Accept customization,Put Your Good Idea into Reality and Click “Contact Us ”

COMPANY PROFILE

Dongguan HX Fiber Technology Co.,Ltd Located in Dongguan, China. We are a direct manufacturer More than 12 Years experience in producing Armored Optical Cables, Indoor / Outdoor Fiber Optic Cable,FTTH Drop Cable,Connector, Patch Cords, Pigtail, Adapter, PLC Splitter, MPO/MTP Solution The Certifications are ISO 9001:2015 , UL,RoHS, . we own 5 lines for cable production, 87 armoring machines for armored cables. The customers who have cooperated with us: Amphenol Industrial, Rosenberger,YOFC, FiberHome, Foxconn, ZTT. Shipped to USA,Canada,Australia, Belgium, Britain, France, Spain, Italy, Holland, Portugal...... OEM , LOGO Custom are accept

SERVICE & PRODUCTION CAPACITY

FOREIGN EXHIBITIONS

COOPERATIVE BRAND & CERTIFICATION

PAYMENT & TRANSPORTATION METHOD

FAQ

1. Are you the real manufacturer?
Yes. We are the real manufacturer with more than 20 years’ history, welcome to visit us!

2. What is your minimum quantity?
1KM. We support new project of our customers, trial order is available.

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?
Yes, we can customize according to your requirements(logo,package,printing and so on).

5. How long will it take you to deliver?
Our usual delivery date takes 15 to 20 days.

6. Can we trust you?

We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?
At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.

9. What mode of transportation do you support?
Ocean transportation,air transport,Express, etc.
