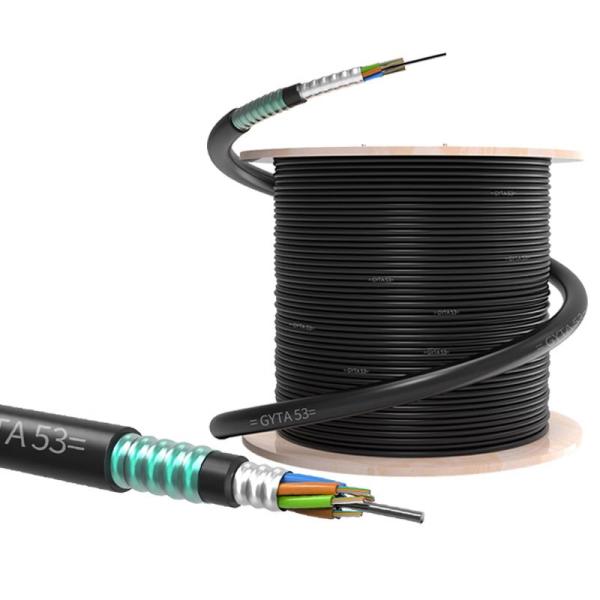

Stranded Loose Tube Armoured Outdoor Cable G652D G657A1 G657A2

Model Number : HX-SW4

Place of Origin : Guangdong, China

Brand Name : HX Fiber

Certification : RoHS

Packaging Details : Wooden shaft+Export cardboard box

Supply Ability : 1500000 Piece/Pieces per Month

MOQ : 50 meters

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : Negotiable

Type : Outdoor Fiber Optic Cable

Number of Conductors : ≥ 10

Product name : GYTA53 Fiber Cable

Application : Telecom Comunication

Jacket : PVC LSZH LSOH PE HDPE

Length : Custom Length

Fiber Type : G652D/G657A1/G657A2

Cable type : Outdoor Armored

Fiber count : 2-288 Cores

Package : Wooden Drum

Service : OEM ODM Accept

Port : Shenzhen

Contact Now

TECHNICAL PARAMETERS
Core Number
Loose Tube Quantity
Filling Rope Number
Fiber Optic Cable Weight (kg/km)
2-6
1
5
177
8-12
2
4
177
14-18
3
3
177
20-24
4
2
177
26-30
5
1
177
32-36
6
0
177
38-48
4
1
194
50-60
5
0
194
62-72
6
0
204
74-84
7
1
239
86-96
8
0
239
98-108
9
1
275
110-120
10
0
275
122-132
11
1
312
134-144
12
0
312
146-216
13-18
5-0
312
Allowable Tensile Force
Long Term/Short Term
(N)
Allowable Tensile Force
Long Term/Short Term
(N)
Allowable Flattening Force Long Term/Short Term
(N/100mm)
Bending Radius
Static/Dynamic
(mm)
1000/3000
800/1500
1000/3000
12.5D/25D

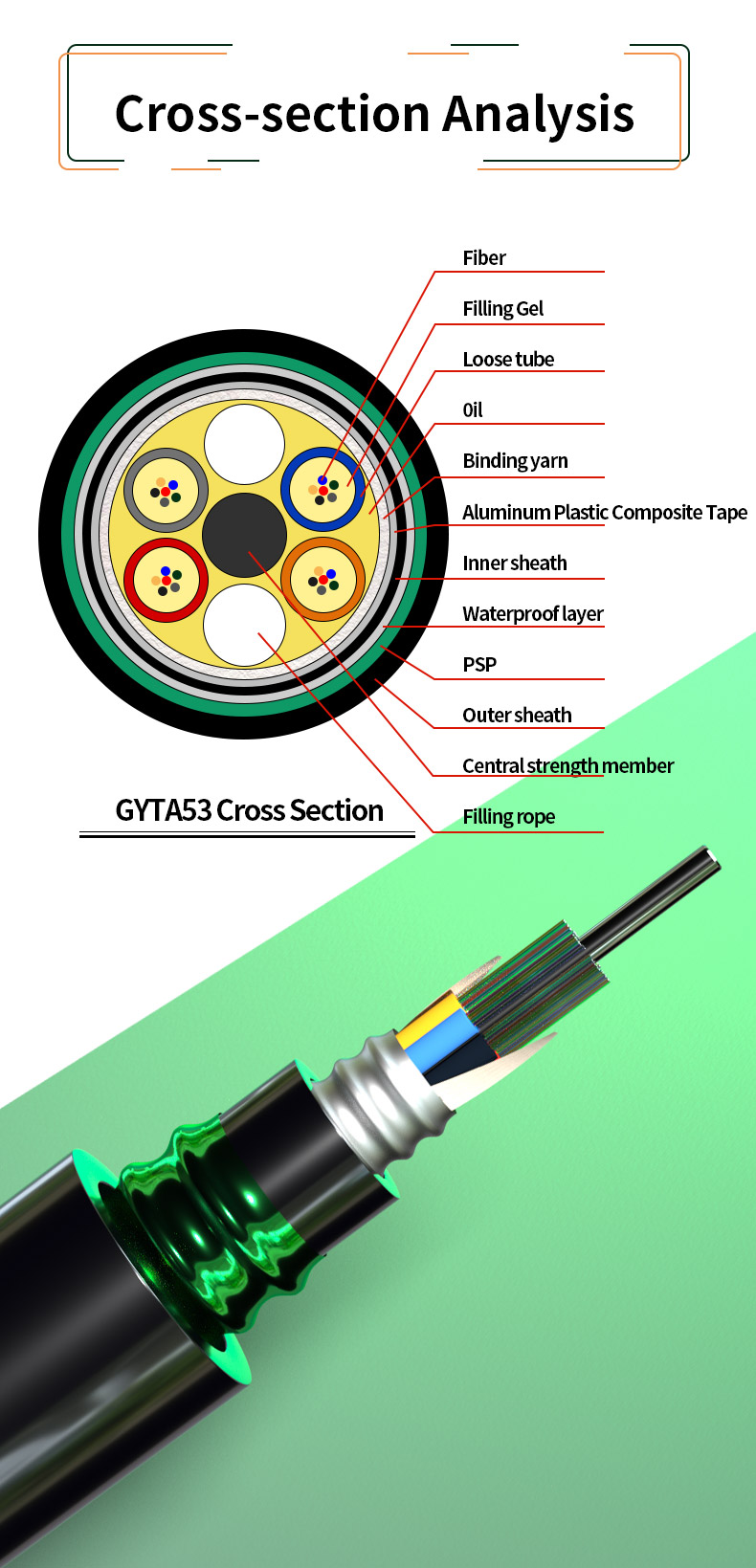

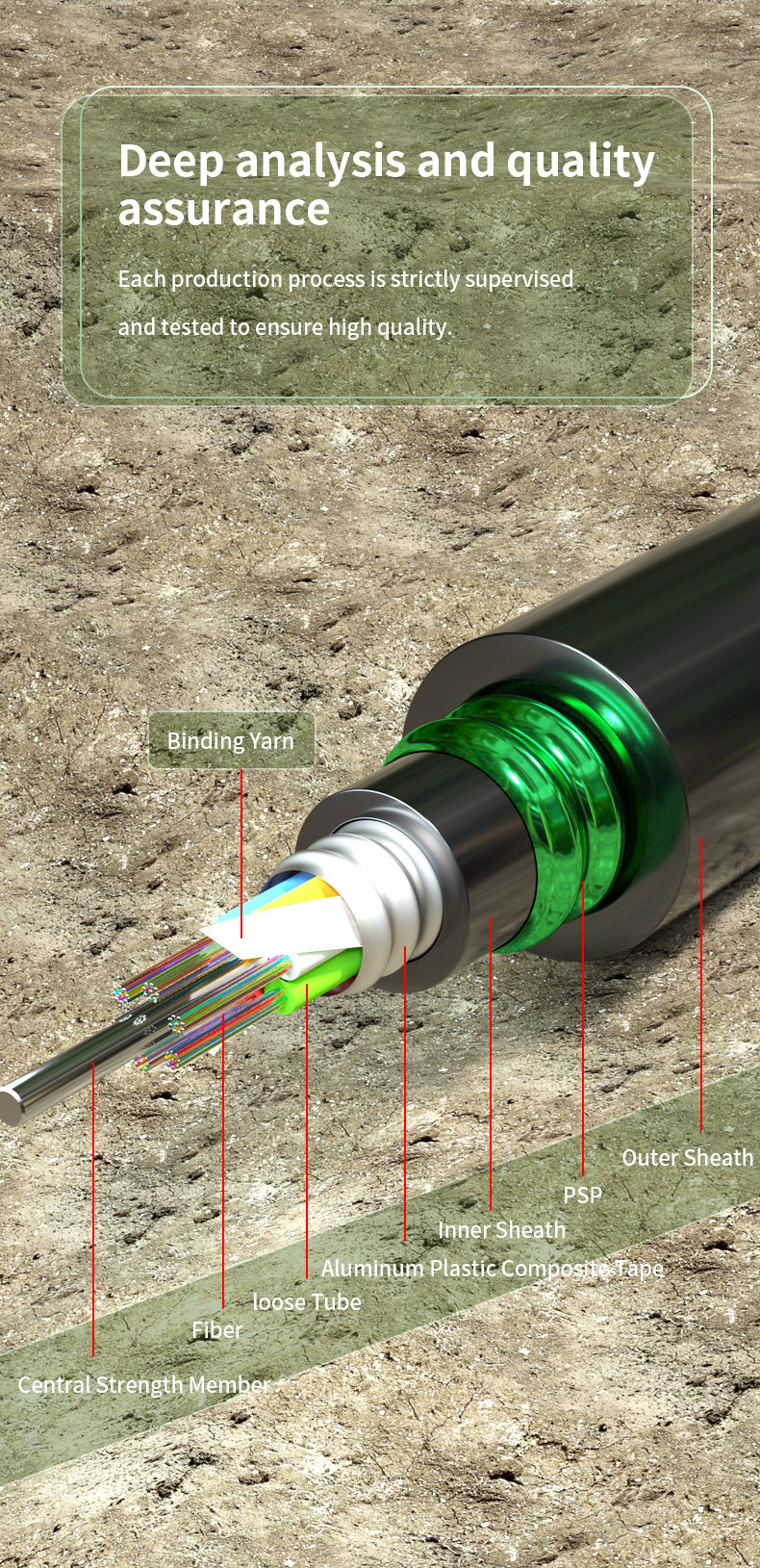

PRODUCT FEATURES
①The inner casing is filled with buffer grease, which protects the optical fiber and plays a waterproof role
②The use of loose casing stranded to ensure the stability of the cable structure
③Strengthening parts to bear the axial load
④The cable core is filled with water-blocking ointment, which can effectively waterproof the cable
⑤Aluminum tape longitudinal wrapping, good moisture barrier performance
⑥The inner sheath can effectively buffer the external mechanical load
⑦Longitudinal wrapping of steel tape, with good lateral pressure resistance
PRODUCT DESCRIPTION
Stranded Loose Tube Armoured Outdoor Cable G652D G657A1 G657A2
Stranded Loose Tube Armoured Outdoor Cable G652D G657A1 G657A2
Stranded Loose Tube Armoured Outdoor Cable G652D G657A1 G657A2
Stranded Loose Tube Armoured Outdoor Cable G652D G657A1 G657A2
Stranded Loose Tube Armoured Outdoor Cable G652D G657A1 G657A2
Stranded Loose Tube Armoured Outdoor Cable G652D G657A1 G657A2
Stranded Loose Tube Armoured Outdoor Cable G652D G657A1 G657A2
Stranded Loose Tube Armoured Outdoor Cable G652D G657A1 G657A2
Stranded Loose Tube Armoured Outdoor Cable G652D G657A1 G657A2
FOREIGN EXHIBITIONS
Stranded Loose Tube Armoured Outdoor Cable G652D G657A1 G657A2
COOPERATIVE BRAND & CERTIFICATION
Stranded Loose Tube Armoured Outdoor Cable G652D G657A1 G657A2
PAYMENT & TRANSPORTATION METHOD
Stranded Loose Tube Armoured Outdoor Cable G652D G657A1 G657A2
FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with more than 20 years’ history, welcome to visit us!

2. What is your minimum quantity?
1KM. We support new project of our customers, trial order is available.

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?
Yes, we can customize according to your requirements(logo,package,printing and so on).

5. How long will it take you to deliver?
Our usual delivery date takes 15 to 20 days.

6. Can we trust you?
We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?
At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.

9. What mode of transportation do you support?
Ocean transportation,air transport,Express, etc.
