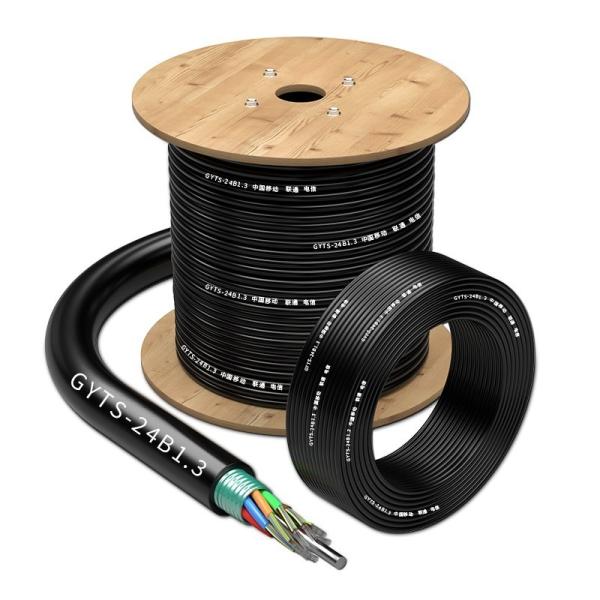

Black G72B1.3 G652D 36B1.3 PE Outdoor Armored Fiber Optic Cable For Overhead Pipeline

Model Number : HX-GL2

Place of Origin : Guangdong, China

Brand Name : HX

Certification : CE/ROHS/ISO9001

Packaging Details : Wooden reel, Iron-wooden reel

Supply Ability : 1500000 Piece/Pieces per Month

Price : Negotiable

Type : Fiber Optic Cable

Number of Conductors : ≥ 10

Application : Outdoor duct and conduit

Product name : Outdoor Optic Fiber Cable

Color : Black

Jacket : PE Jacket

Length : Custom Length

Cable Structure : Multi-Loose Tube

Fiber options : ITU G652D ,G657A,OM1,OM2,OM3,OM4

Strength member : Central Steel Wire or Fiberglass reinforced plastic (FRP)

Packing : Wooden Drum

Port : Shenzhen

Contact Now

Black GYTS 72B1.3 Outdoor G652D 36B1.3 PE Armoured Fiber Optic Cable for Overhead Pipeline

G.652
G.655
50/125 μm
62.5/125 μm
Attenuation (+20°C)
@850nm
≤3.0dB/km
≤3.3dB/km
@1300nm
≤1.0dB/km
≤1.0dB/km
@1310nm
≤0.36dB/km
≤0.40dB/km
@1550nm
≤0.22dB/km
≤0.23 dB/km
Bandwidth (A-level)
@850nm
≥500 MHz·km
≥200 MHz·km
@1300nm
≥1000 MHz·km
≥600 MHz·km
Numerical aperture
0.200±0.015NA
0.275±0.015NA
Optical fiber cable cut-off wavelength
≤1260nm
≤1450nm
Applicable: pipeline, overhead
Optic fibre cable
(in increments of 2 fibers)
Number of fibers
Number of casings
Number of filling ropes
Fiber optic cable diameter
(mm)
GYTA-2~6
2~6
1
4
9.2
GYTA-8~12
8~12
2
3
9.2
GYTA-14～18
14~18
3
2
9.2
GYTA-20~24
20~24
4
1
9.2
GYTA-26~30
26~30
5
0
9.2
GYTA-32~36
32~36
6
0
9.7
GYTA-38～48
38~48
4
1
10.5
GYTA-50~60
50~60
5
0
10.5
GYTA-62~72
62~72
6
0
11.5
GYTA-74~84
74~84
7
1
13.2
GYTA-86～96
86~96
8
0
13.2
GYTA-98~108
98~108
9
1
14.6
GYTA-110~120
110~120
10
0
14.6
GYTA-122~132
122~132
11
1
16.5
GYTA-134~144
134~144
12
0
16.5
GYTA-146~216
146~216
13-18
5-0
16.5
GYTA-288
288
24
0
16.5
Fiber Optic Cable Weight
(kg/km)
allowable tensile force
long term/short term
(N)
allowable flat pressure
long term/short term
(N/100mm)
bending radius
static/dynamic
(mm)
80
600/1500
300/1000
10D/20D
80
80
80
80
97
1000/3000
109
109
126
153
153
182
182
221
221
222
283
*Storage and use temperature: -40°C to +70°C. (The above parameters are for reference only)
Characteristics:
·Steel jacket offers high tension and crush resistance special gel in the tube offers critical protection for the fibers
·With steel central strength member ·PE jacket itself prevents UV,and UV material can be added ·to perform much better It's avalable under high and low temperatures ·anti-aging
Applications:
·Conduit/buried ·Connecting communication equipments ·Mulfi-cores wiring systems in data centers
Standard:
·GYTS complies with YD/T901-2009 and IEC 60794-1 standards ·YD/T 901-2009 & IEC 60794-1
Product Description
Black G72B1.3 G652D 36B1.3 PE Outdoor Armored Fiber Optic Cable For Overhead Pipeline
Black G72B1.3 G652D 36B1.3 PE Outdoor Armored Fiber Optic Cable For Overhead Pipeline
Black G72B1.3 G652D 36B1.3 PE Outdoor Armored Fiber Optic Cable For Overhead Pipeline
Black G72B1.3 G652D 36B1.3 PE Outdoor Armored Fiber Optic Cable For Overhead Pipeline
Black G72B1.3 G652D 36B1.3 PE Outdoor Armored Fiber Optic Cable For Overhead Pipeline
Black G72B1.3 G652D 36B1.3 PE Outdoor Armored Fiber Optic Cable For Overhead Pipeline
Black G72B1.3 G652D 36B1.3 PE Outdoor Armored Fiber Optic Cable For Overhead Pipeline
Black G72B1.3 G652D 36B1.3 PE Outdoor Armored Fiber Optic Cable For Overhead Pipeline
Product Design
Black G72B1.3 G652D 36B1.3 PE Outdoor Armored Fiber Optic Cable For Overhead Pipeline
Accept customization,Put Your Good Idea into Reality and Click “Contact Us ”
Customer evaluation
Black G72B1.3 G652D 36B1.3 PE Outdoor Armored Fiber Optic Cable For Overhead Pipeline
Company Profile
Black G72B1.3 G652D 36B1.3 PE Outdoor Armored Fiber Optic Cable For Overhead Pipeline
Dongguan HX Fiber Technology Co.,Ltd Located in Dongguan, China. We are a direct manufacturer More than 12 Years experience in producing Armored Optical Cables, Indoor / Outdoor Fiber Optic Cable,FTTH Drop Cable,Connector, Patch Cords, Pigtail, Adapter, PLC Splitter, MPO/MTP Solution The Certifications are ISO 9001:2015 , UL,RoHS, . we own 5 lines for cable production, 87 armoring machines for armored cables. The customers who have cooperated with us: Amphenol Industrial, Rosenberger,YOFC, FiberHome, Foxconn, ZTT. Shipped to USA,Canada,Australia, Belgium, Britain, France, Spain, Italy, Holland, Portugal...... OEM , LOGO Custom are accept
Service&Production Capacity
Black G72B1.3 G652D 36B1.3 PE Outdoor Armored Fiber Optic Cable For Overhead Pipeline
Foreign Exhibitions
Black G72B1.3 G652D 36B1.3 PE Outdoor Armored Fiber Optic Cable For Overhead Pipeline
Cooperative Brand&Certification
Black G72B1.3 G652D 36B1.3 PE Outdoor Armored Fiber Optic Cable For Overhead Pipeline
Black G72B1.3 G652D 36B1.3 PE Outdoor Armored Fiber Optic Cable For Overhead Pipeline
Payment&Transportation Method
Black G72B1.3 G652D 36B1.3 PE Outdoor Armored Fiber Optic Cable For Overhead Pipeline
FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with more than 20 years’ history, welcome to visit us!

2. What is your minimum quantity?
1KM. We support new project of our customers, trial order is available.

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?
Yes, we can customize according to your requirements(logo,package,printing and so on).

5. How long will it take you to deliver?
Our usual delivery date takes 15 to 20 days.

6. Can we trust you?
We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?
At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.

9. What mode of transportation do you support?
Ocean transportation,air transport,Express, etc.
