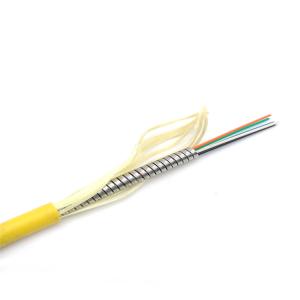

6C G657A2 LSZH PE PVC Anti Rodent Armoured Fiber Cable With 6 Conductors

Model Number : HX-GQJG-13

Place of Origin : Guangdong, China

Brand Name : HXFiber

Packaging Details : 1KM/drum or 2KM/drum packaged with wooden

Supply Ability : 1500 Kilometer/Kilometers per Month

MOQ : 1000 meters

Price : Negotiable

Type : Armored Fiber Optic Cable, Armored Fiber Optic Cable

Number of Conductors : 6

Number of cores : 1-48 core

Fiber type : OM1/OM2 / OM3 / OM4 / G652D / G657A1 / G657A2

Material of Armored Tube : Stainless steel

Material of Outer sheath : PVC,LSZH,PU,PE

Working Temperature(℃) : -20℃~+70℃

Bending radius(Dynamic) : 10D

Bending radius(Static) : 20D

MOQ : 1KM

Delivery date : 3-7 Days

Port : shenzhen

Contact Now

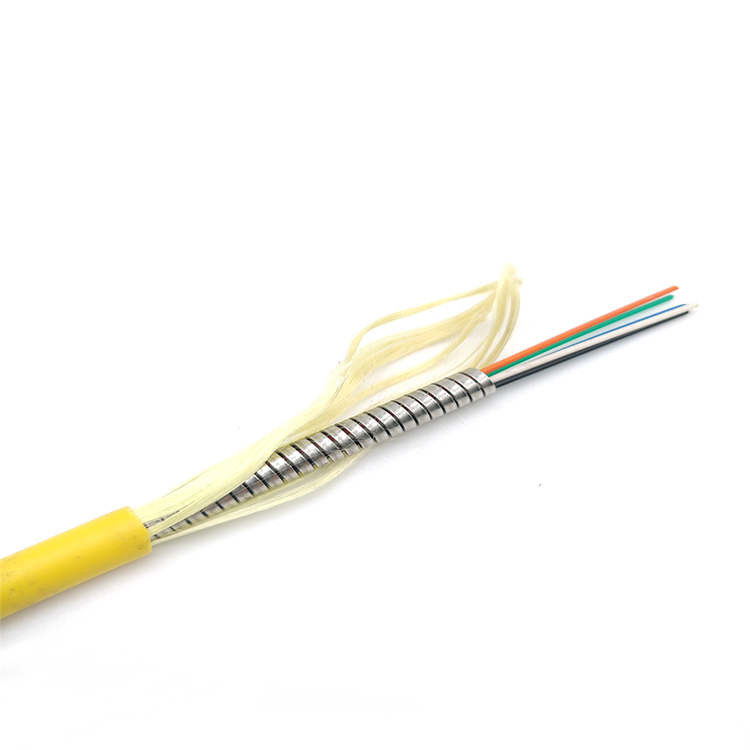

6C G657A2 LSZH PE PVC Anti-Rodent Flexible Armored Fiber Optic Cable with 6 Conductors

Products Description
6C G657A2 LSZH PE PVC Anti Rodent Armoured Fiber Cable With 6 Conductors
Item
Value
Type
Outdoor/Indoor Fiber Optic Cable
Place of Origin
Guangdong CHINA
Brand
OEM
Number of Conductors
≥ 1
Product name
Armored fiber optic cable
Application
chemical plant, oil refinery, forest, subway...
Fiber
9/125um, 62.5/125um, 50/125um
Cable OD.
3.0mm/4.0mm/5.0mm/6.0mm/7.0mm/8.0mm
HS CODE
8544700000
Armored
Spiral steel armored protected
Mode
Singlemode ,MultiMode
SM / MM
G.652D, G.657A1 or G.657A2 ,OM1,OM2,OM3,OM4
Metal Braiding
Stainless steel
Tensile
Kevlar
Temperature(°C)
-20~+75°C
Cable loss(db/km)
850nm ≦3.5 ; 1300nm ≦1.5
Tensile(N)
Long Term: 300N ; Short Term : 500N
Bending Radius(mm)
Dynamic 20D, Static 10D
6C G657A2 LSZH PE PVC Anti Rodent Armoured Fiber Cable With 6 Conductors
6C G657A2 LSZH PE PVC Anti Rodent Armoured Fiber Cable With 6 Conductors
Armored Fiber Optic Cable
Fiber Type:
G.652D, G.657A1 or G.657A2 single mode fiber and OM1, OM2, OM3, OM4 mutimode fiber.
Features:

* Mini diameter SUS spring tube reinforced ensures good crush resistance.
* Kevlar strengthened provide good tensile strength.
* LSZH Outer jacket complies with UL, RoHS
Application:
*Applied to the patch cord of the optical terminal
*Indoor outdoor for FTTH and optical distribution,connection between optical cable and communication equipment room
6C G657A2 LSZH PE PVC Anti Rodent Armoured Fiber Cable With 6 Conductors

1 Core

Armored Fiber Optic Cable,
Anti-Rodent,
Anti-Bending.
6C G657A2 LSZH PE PVC Anti Rodent Armoured Fiber Cable With 6 Conductors

2 Cores

Armored Fiber Optic Cable,
Anti-Rodent,
Anti-Bending.
6C G657A2 LSZH PE PVC Anti Rodent Armoured Fiber Cable With 6 Conductors

4 Cores

Armored Fiber Optic Cable,
Anti-Rodent,
Anti-Bending.
6C G657A2 LSZH PE PVC Anti Rodent Armoured Fiber Cable With 6 Conductors

6 Cores

Armored Fiber Optic Cable,
Anti-Rodent,
Anti-Bending.
6C G657A2 LSZH PE PVC Anti Rodent Armoured Fiber Cable With 6 Conductors

12 Cores

Armored Fiber Optic Cable,
Anti-Rodent,
Anti-Bending.
6C G657A2 LSZH PE PVC Anti Rodent Armoured Fiber Cable With 6 Conductors

Armored Tube

Stainless steel Armored Tube,
